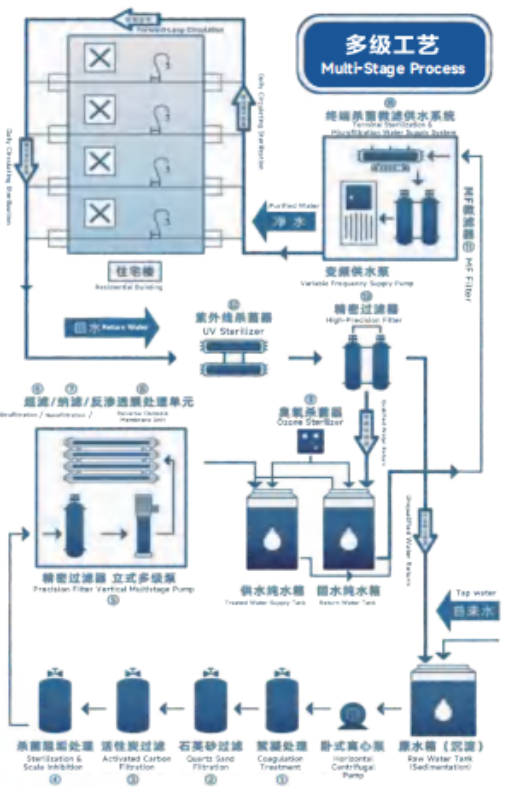

The raw water tank facilitates primary sedimentation and acts as a buffer for raw water storage. It helps stabilize the incoming water pressure and serves as an emergency backup water source, ensuring a stable supply for the pipe system for fine drinking water.

The system uses quartz sand multi-media filters primarily to remove harmful substances in the raw water, such as silt, rust, colloids, and suspended solids, all of which could pose risks to human health.

The system uses fruit shell-based activated carbon filters to remove color, odors, biochemical organics, excess oxygen, pesticide pollutants, and other harmful substances from the water.

This system applies ion exchange technology using softening resin as the medium to soften water, mainly by lowering its hardness and removing calcium and magnesium ions (the primary components of scale).

Further purification of the water is achieved through this system, which removes harmful substances and optimizes turbidity and color for higher-quality water.

A flow-through ultraviolet sterilizer is employed for dual disinfection to significantly reduce secondary bacterial contamination. The sterilization rate exceeds 99%, effectively preventing bacterial growth in the membrane unit.

This system effectively removes harmful contaminants such as bacteria, heavy metals, pesticide residues, and fine impurities invisible to the naked eye. By using different membrane combinations, it also ensures the retention of essential trace elements and minerals, which contribute to better taste and safer, healthier water.

Medical stone, a natural silicate mineral, has strong adsorption properties for heavy metal ions, bacteria, nitrites, phenols, and other harmful substances. Medical stone releases essential minerals into the water, helps adjust the pH level, and provides antibacterial effects, thus ensuring safety and quality of the water.

This system integrates precision filtration with submerged ultraviolet sterilizers to achieve double disinfection and reduce secondary bacterial contamination. With a sterilization efficiency of over 99%, the water is thoroughly filtered, achieving a 100% pass rate to ensure both safety and health.

The ozone sterilization system is set to operate on a timed schedule to prevent bacterial growth in both the finished water tank and the pipeline network. At the same time, ozone dissolves in the water and forms oxygen-rich water that ensures the purity and freshness of the water. Precision filtration is used to filter the water returning from the pipeline to the tank, preventing secondary contamination and ensuring no impurities flow back into the tank.
